Place of Origin : Ningbo,China
Brand Name : Donghuan
Certification : ISO9001
Model Number : HT-Z1
MOQ : Negotiable
Price : Negotiable
Packaging Details : Exported Box and carton
Delivery Time : 7 days after deposit
Payment Terms : L/C, T/T, Western Union
Supply Ability : 500pcs per month
Product Name : Crimping Pliers
Weight : 10-17KG
Type : Hydraulic Crimping Tools
Package : box
Warranty : 1 Year
Crimping Force : 60KN
Application : power construction
Power : Electrical Powered
Charging Type Hydraulic Crimping Pliers
Hydraulic Crimping Pliers Introduction
Portable battery electrical powered hydraulic crimping tool, crimping pliers is used to compress copper and aluminum terminals.
Hydraulic Crimping Pliers Technical Data
Item number | 16209A | 16209 |
Model | HT-Z1 | HT-Z2 |
Crimping force(KN) | 60KN | 60KN |
Crimping range | 16-400mm² | 16-300mm² |
Crimp charge | 250times(CU150mm²) | 320times(CU150mm²) |
Crimping cycle | 3s-6s(depend on the size of cable) | 3s-6s(depend on the size of cable) |
Stroke | 35mm | 17mm |
voltage | 18V | 18V |
Capacity | 3.0Ah | 3.0Ah |
Charging time | 2hours | 2hours |
Weight (kg) | approx.N.W10KG G.W17KG | approx.N.W8KG G.W15KG |
Package | plastic box | plastic box |
Hydraulic Crimping Pliers Details
![]() |

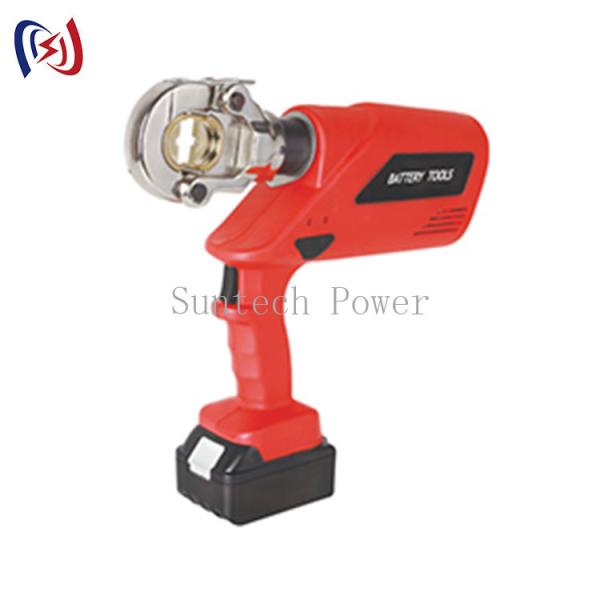

Hydraulic Crimping Pliers 60KN Hydraulic Crimping Tools Images |
